Development Concept & Features
Perfect Oil management with output increase modification.
Provides a cooling performance that allows the vehicle to perform many laps.
Traditional layout allowing both oil and water temperature control.
Although Turn-Flow Type Core has small core surface for improved cooling performance.

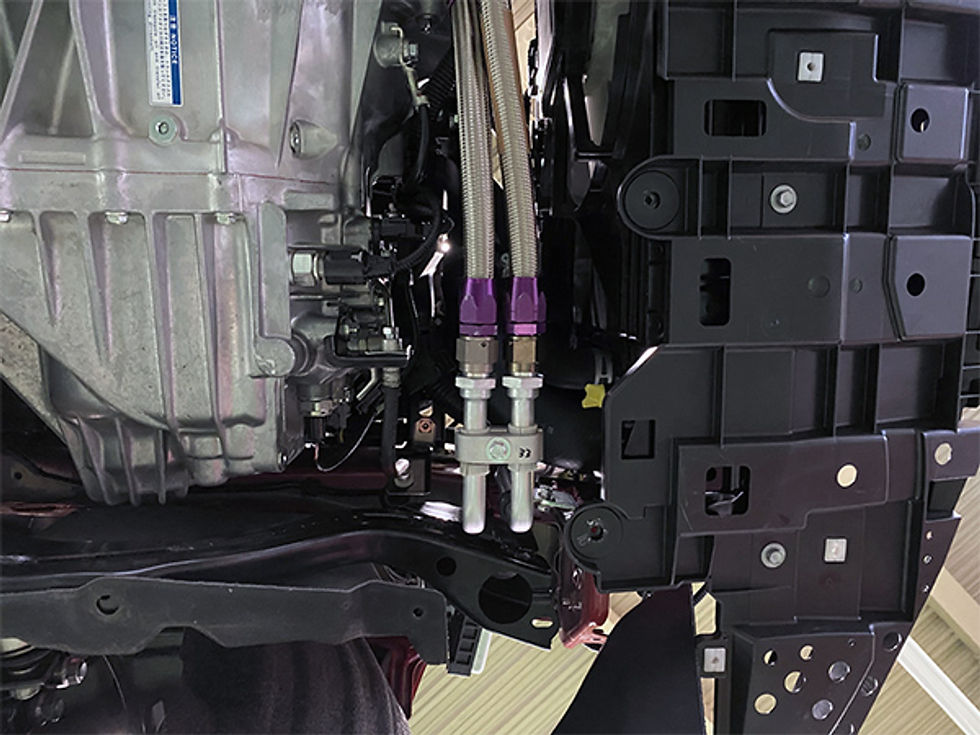

Oil aluminum pipes are a highly efficient style that makes effective use of limited space.

■HKS Test Data
TRACK DATA
Track Name
FSW Short Course
Surface
Asphalt
Length
810m~920m
Turms
4~8
Temperature
25℃
TEST VEHICLE
Suspension
HIPERMAX S
Exhaust
SUPER TURBO MUFFLER
Intake
HKS Cold Air Intake System
ECU
Power Editor
Turbo
Stock
Intercooler
HKS Intercooler Kit
Oil
HKS SUPER OIL Premium 0W-20

■Description
HKS has tested various ways that the danger of high chronic oil temperatures raises with GR Yaris, and HKS has developed a Turn-Flow Type oil cooler that allows continuous track driving. This provides competent oil management and continuous sustained performance.
The tests showed a clear high level of oil management, with about four times as many hours/miles driven in stock conditions. Authentic tests using real vehicles prove the high standards of HKS product.



Vehicle
Model
Engine
Model Year
Core Size・Row
Core Location
Type
Hose Size
Aluminum Air Guide
Code No.
Manual
Remarks
GR YARIS
GXPA16
G16E-GTS
20/09 -
412x114x40・
In front of the radiator
S type
#10

15004-AT013

Standard Installation Time: 5~6 hours. Check the oil gauge and adjust the oil level to the correct level.
